Road Planers

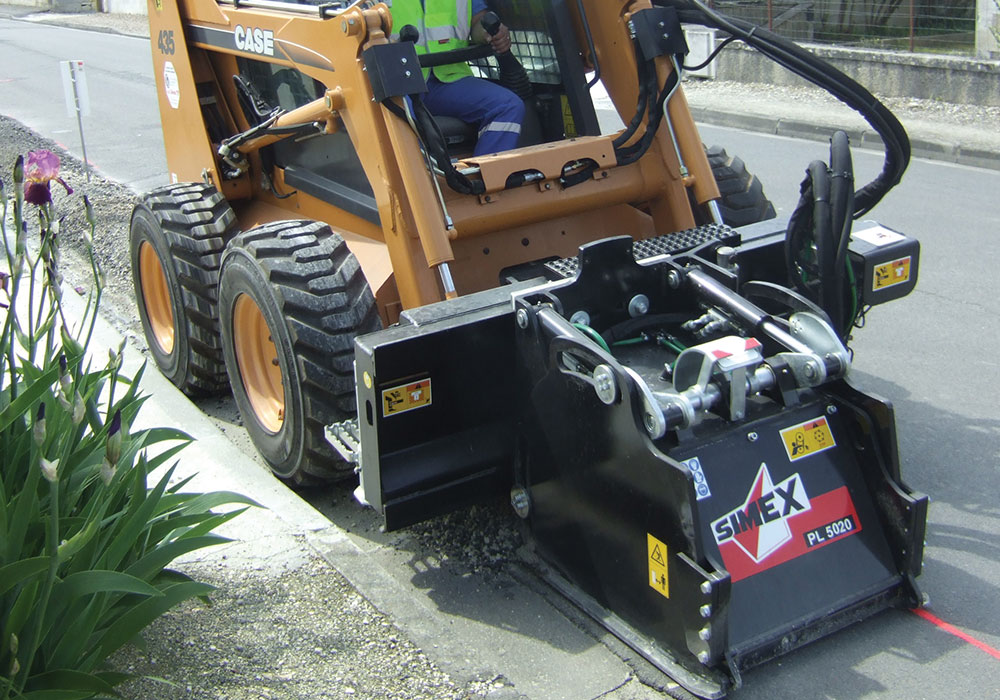

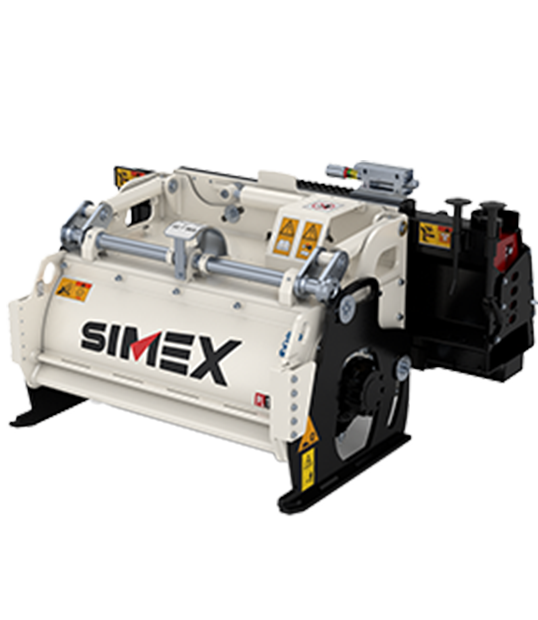

SIMEX PL Self-Levelling Road Planers
SIMEX self-levelling Road planers are designed for removing the entire layer of asphalt or cement in preparation for trenching or for milling deteriorated sections for later resurfacing. With the Simex Planers you can maintain constant milling depth in any condition regardless of the ground contour as lateral slides on the planer automatically align to the milling surface.
Self Levelling Planers are available in a range of models that reach a maximum width of 2,000 mm and depth of 350 mm.
High Performance
Hydraulic piston motors with direct cutter drum drive ensure high performance and Self-Levelling system ensures constant planing depth.
Productivity
The patented Performer device optimises the planer's performance according to the forward speed of the operating machine.
Low Maintenance
You can choose from different types of teeth based on application and keep maintenance costs to a minimum since only requirement is the replacement of worn teeth.
Why choose a SIMEX Road Planer?
The advantages of Simex Self-Levelling Road Planers are various:
- Self-Levelling system (Simex patent) ensures constant planing depth
- Lateral support slides guarantee max stability and no vibration
- Minimal material spill outs
- Hydraulic side shift ensures perfect surfaces with side-by-side passes
- Built-in water tank reduces dust
- Drums in different widths and teeth available for various applications
- Maximum safety and optimal visibility for the operator
Applications and Features
SIMEX PL range of road planers are ideal for the following applications due to its innovative features that make the work faster and safer.
- Asphalt milling
- Scarification of urban surfaces
- Stabilising and rehabilitating existing damaged roads (PL 60.25 and PL100.25)
- Perfect for minor road rectification and restricted area works
- Potholes or asphalt potholes repair
- Removing the entire layer of asphalt or cement in preparation for trenching

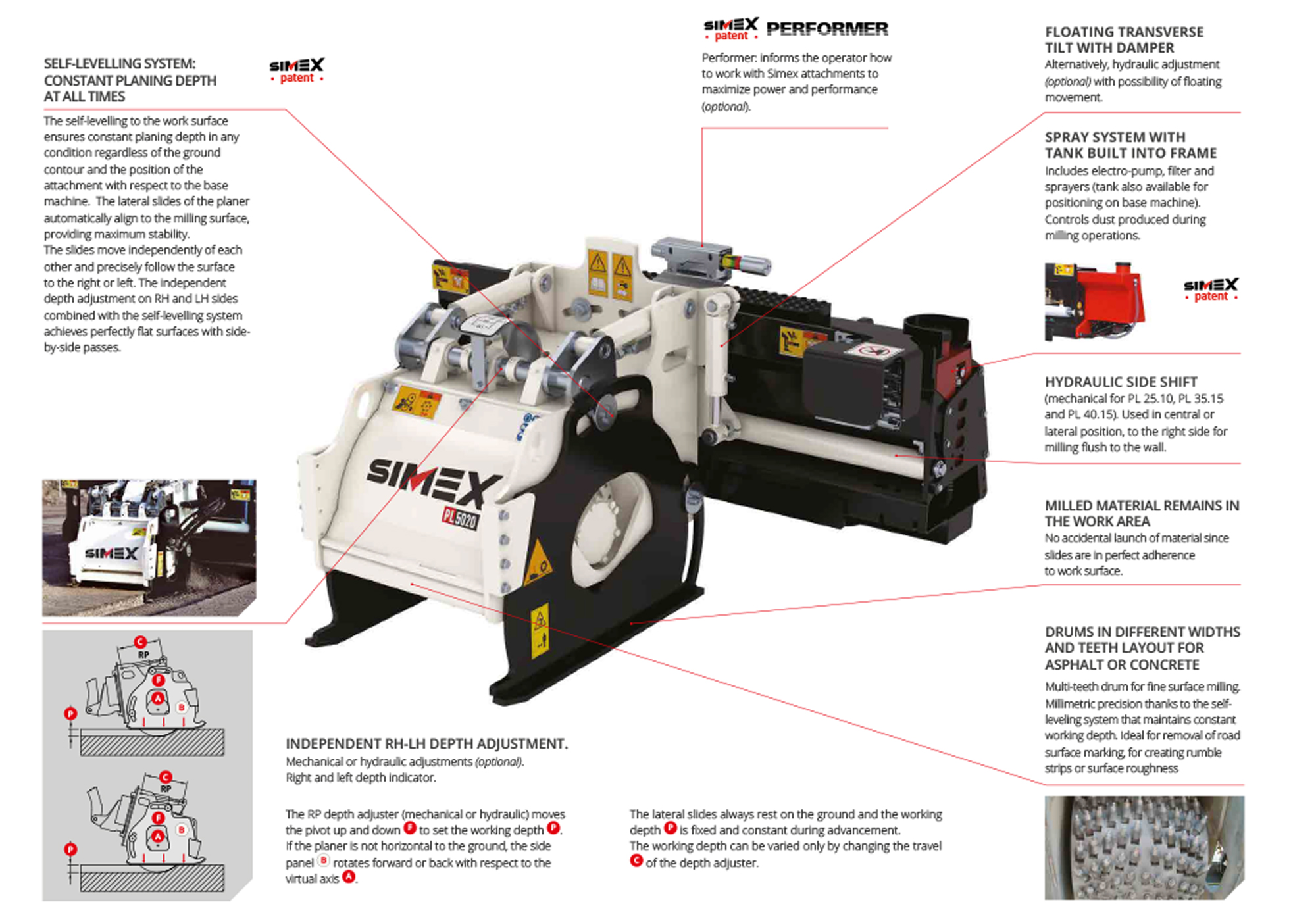

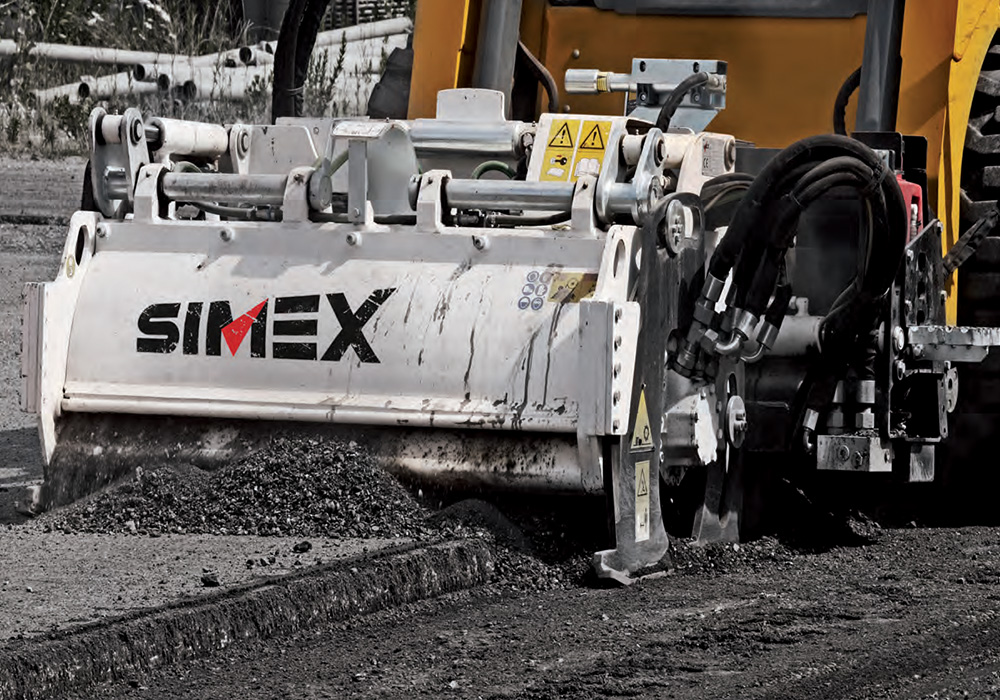

Self-Levelling system and Independent depth adjustment
With the SIMEX Planers you can maintain constant milling depth in any condition regardless of the ground contour as lateral slides on the planer automatically align to the milling surface.
The independent depth adjustment on RH and LH sides combined with the self-levelling system ensures perfectly flat surfaces with side-by-side passes.
The independent depth adjustment on RH and LH sides combined with the self-levelling system ensures perfectly flat surfaces with side-by-side passes.

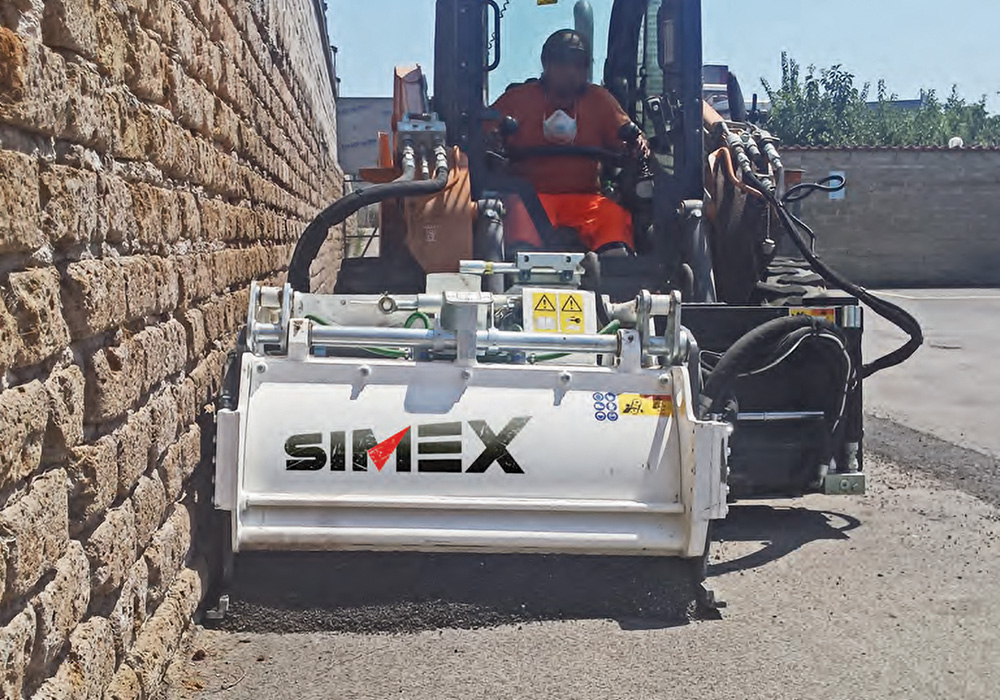

Side shift for milling flush to walls
Due to the hydraulic side shift, it is possible to work in both central and lateral position which makes SIMEX PL planer ideal for application where milling flush to the wall is required.
Optimised milling with 'Performer'
Mounted in an ergonomic position, easy to view from the operator cabin, the patented Performer device optimises the planer's performance according to the forward speed of the operating machine. This results in:
- increase in productivity
- reduced downtime
- easier work for the operator

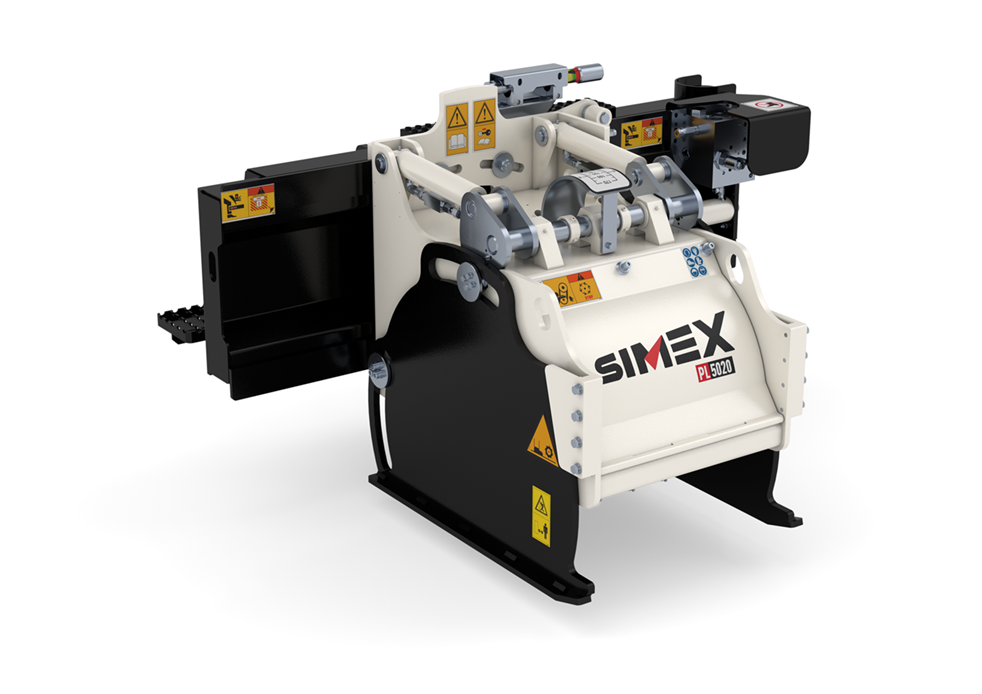

SIMEX PL Road Planer range - specifications
SIMEX Self Levelling PL Planers are available in a range of models that reach a maximum width of 2,000 mm and depth of 350 mm.
You can fit the PL Planers onto skid steer loaders, hydrostatic drive loaders and backhoe loaders. You can choose drums in different widths and teeth layout for asphalt or cement, or multi-tooth drum for fine surface milling.
You can fit the PL Planers onto skid steer loaders, hydrostatic drive loaders and backhoe loaders. You can choose drums in different widths and teeth layout for asphalt or cement, or multi-tooth drum for fine surface milling.
